Panduit Introduces New Technology for Harness Assembly Board Layout

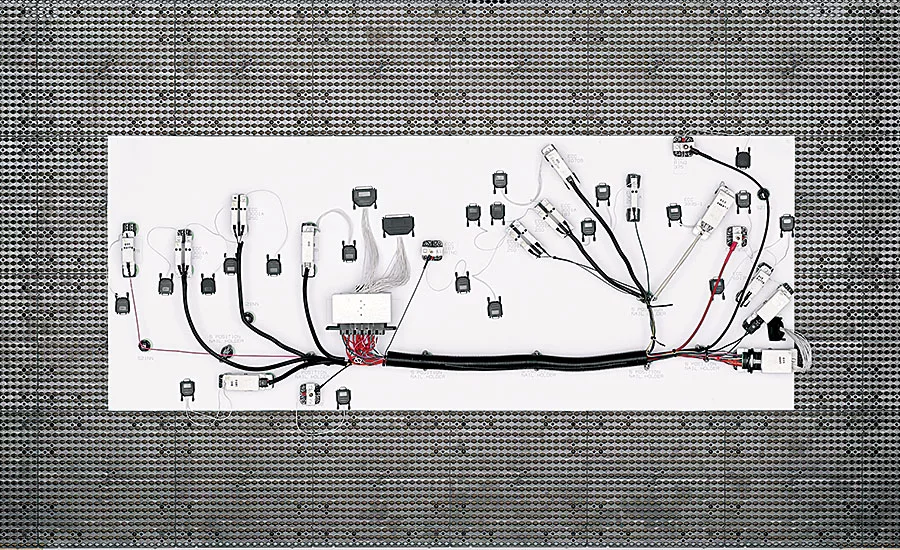

The Quick-Build system allows engineers to create a reusable harness layout board that can be reconfigured quickly and easily. Photo courtesy Panduit

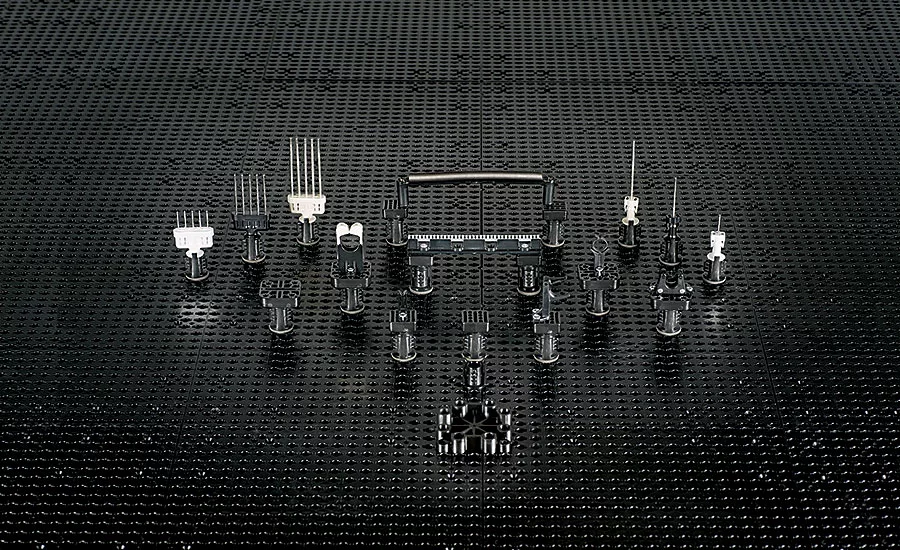

Quick-Build mounting pegs accept various wire-holding accessories, including single-nail wire holders, five-nail wire holders and mounting platforms. Photo courtesy Panduit

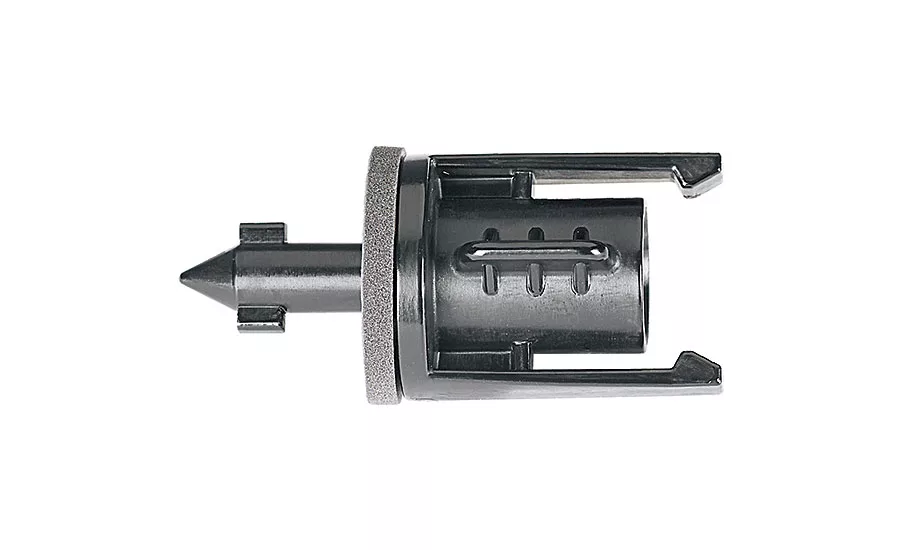

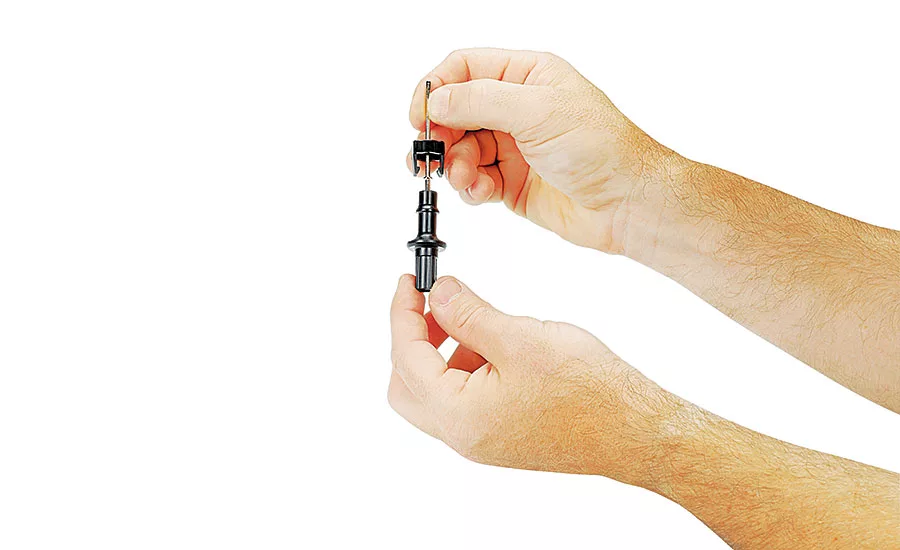

Once a mounting peg is inserted into a hole, a quarter turn locks it in place. A rubber washer at the base of the peg provides clamping force to keep it in place. Photo courtesy Panduit

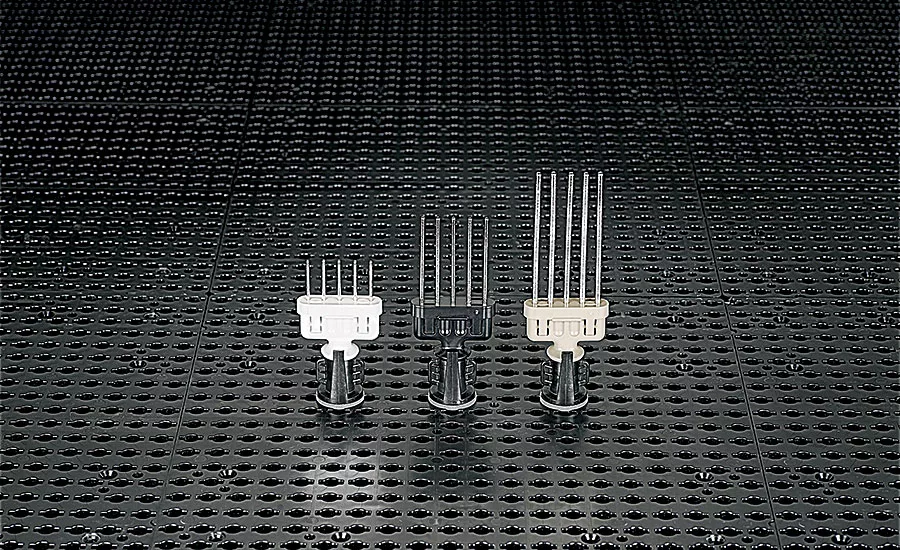

These five-nail wire holders are molded in black, gray or white plastic so engineers can use color-coding to assist technicians during assembly. Photo courtesy Panduit
Detents molded into the base of each accessory allow it to be rotated within the peg for easier routing of branches and breakouts. Photo courtesy Panduit
Wire harnesses are typically assembled manually. A full-scale 2D drawing of the harness is printed with a plotter and attached to a piece of plywood. Assorted clips and nails are then attached to the board at key locations on the drawing, such as ends and breakouts. Assemblers then manually route the wires from point to the next like a giant game of connect the dots.
When it comes time to assemble a new harness, the process starts all over again with a fresh board. The old board—with all its clips, nails and fixtures in place—gets put away until it’s needed again. A high-mix shop might keep dozens or even hundreds of such boards on hand. That’s no small expense. What’s more, storing all those boards can be a nuisance. They take up a lot of space, and moving them on and off the shop floor represents an ergonomic hazard.
Engineers at Panduit thought there had to be a better way. They set out to design a reusable harness layout board that could be reconfigured quickly and easily. The end result is the Quick-Build harness board system, which was introduced last month. According to Robert J. Krisel, vice president of the OEM business unit at Panduit, this modular, flexible system promises to:
reduce the cost of creating a wire harness layout board by 65 percent.
reduce the cost of wire harness assembly by 18 percent.
reduce the amount of storage space needed for layout boards by 50 percent.
“Looking at the marketplace, we are seeing more local sourcing of wire harness assemblies and a lot more high-mix, low-volume operations,” says Krisel. “The Quick-Build system was really designed for that environment.”
Tiles and Pegs
The base of the system is a 1 foot by 1 foot plastic grid tile with 20 rows of 20 holes. (Tiles are supplied in packs of eight.) The tiles can be fixed to a plywood board with screws. Alternatively, they can be attached to each other with special connectors so the entire grid can be moved more easily. Notches and ridges on the sides of each tile ensure correct alignment.
