GM Uses 3D-Printed Parts in Production Vehicles

The Cadillac CELESTIQ contains a variety of metal and plastic parts produced via additive manufacturing.

Cadillac Celestiq 2 — A gallery of engineering, technology, design, materials, art and inspiration for the handcrafted Cadillac flagship, CELESTIQ Monday, October 17, 2022 at the all-electric vehicle..s unveiling in Los Angeles, California. The Cadillac CELESTIQ incorporates the very pinnacle of automotive technology, and each example will be a bespoke, one of one creation, allowing the client to customize the vehicle. (Photo by Dan MacMedan for Cadillac)
Dan MacMedan for Cadillac

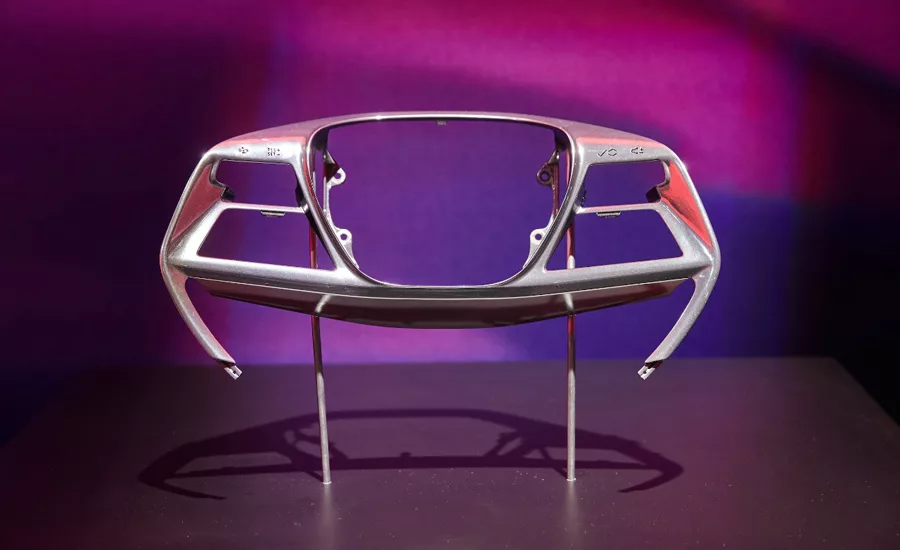

The CELESTIQ steering wheel center was created through metal laser powder bed fusion technology. *Photo courtesy General Motors*

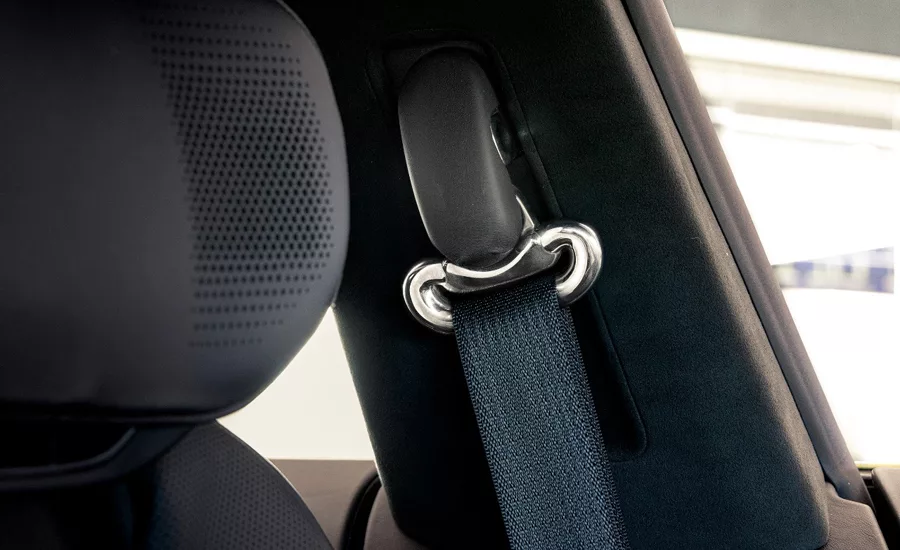

Cadillac Celestiq 3 — The adjustable guide loop for the seat belt was produced with additive manufacturing, marking the first time GM has used the technology to create a safety-related component. Photo courtesy General Motors

DETROIT—For decades, General Motors has used additive manufacturing to create functional prototypes of vehicle components. Now, the automaker is using the technology to make production parts for low-volume vehicles.

Specifically, parts produced via additive manufacturing are being used in the Cadillac CELESTIQ, a luxury, hand-built electric sedan. Additive manufacturing’s precision and flexibility made it the perfect technology to create components for the custom commissioned vehicle. In fact, the CELESTIQ has more than 130 parts produced with additive manufacturing.

The CELESTIQ steering wheel center was created through metal laser powder bed fusion technology, a type of additive manufacturing that enables LED backlighting to clearly read through the part. The part represents GM’s largest 3D-printed production metal part to date. This trim bezel component covers the front face of the steering wheel, surrounding the switches and presenting a sleek finish.

This component is also one of only a few production parts created using metal laser powder bed fusion technology. This type of additive manufacturing uses a laser to infuse layers of metal, creating durable parts with geometries that are impossible to produce through traditional manufacturing processes.

Brennon White, GM technical specialist for advanced manufacturing production applications, has been working in additive manufacturing for 14 years. He explains that the precision and flexibility of additive manufacturing made it the perfect process to create custom components for CELESTIQ.

“We wanted the part to be metal, fitting with the high-end look and feel of the vehicle,” says White. “We looked at multiple options to make this part, and additive won out because it can make a delicate, detailed, and compact part.”

The adjustable guide loop for the seat belt was also produced with additive manufacturing, marking the first time GM has used the technology to create a safety-related component. Last year, this part was given an Award of Distinction by the Metal Powders Industry Federation.

Looking for quick answers on assembly and manufacturing topics? Try Ask ASM, our new smart AI search tool. Ask ASM

“None of the finishes we could find met the high-end needs for this outstanding vehicle,” says White. “Using additive manufacturing allowed us to consolidate several parts into one continuous piece. Not only is it effortlessly beautiful, but the part is also incredibly strong.”

GM also uses 3D printed components in other production vehicles. Cadillac’s V-Series Blackwing models were the first GM production vehicles with 3D-printed parts, including a unique medallion on the manual shifter knob. Additive manufacturing is also used throughout GM motorsports vehicles, including by the Cadillac Racing team.

GM’s work on additive manufacturing is based at the Additive Industrialization Center (AIC), the company’s Tech Center campus in Warren, MI. Opened in December 2020, this 15,000 square-foot facility is home to more than 20 machines used to print both polymer and metal materials.

Most of the 3D-printed components in CELESTIQ were initially developed at AIC before engaging the supply base for production. These include window switches, grab handles, console decor and structural pieces under the surface. With the highest concentration of additive manufacturing parts of any GM product, CELESTIQ is one of the most custom commissioned vehicles on the market.

“When looking at whether to use additive manufacturing, we ask ‘can it meet the functional requirements, and does it make sense economically?’ If the answer is yes to both, we know we should target AM,” says White. “That’s what we did with CELESTIQ, and additive gave us something that we never could have achieved otherwise.”
